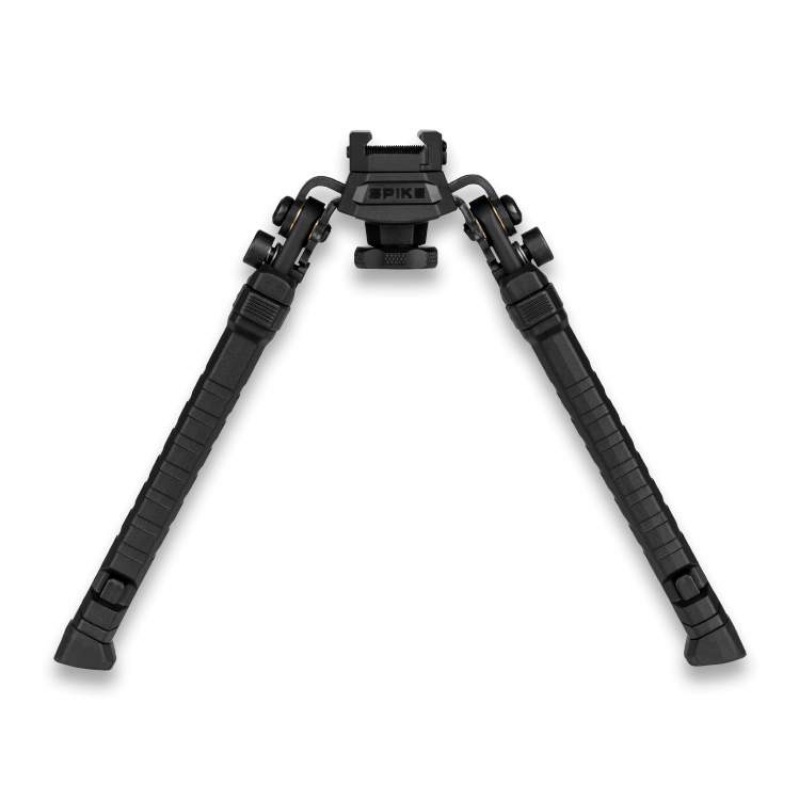

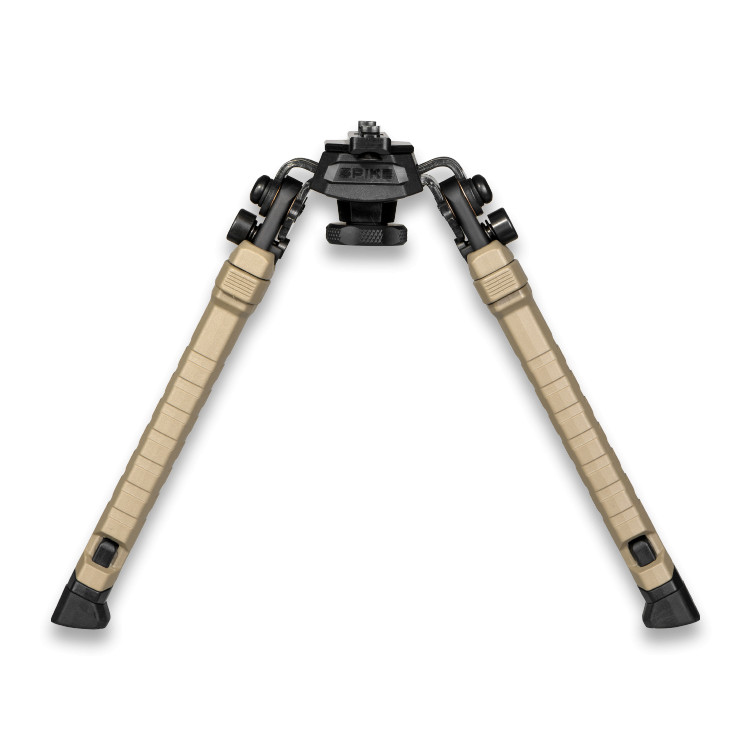

F.A.B Spike

The SPIKE was designed to deliver the best experience and comfort to any mission via its versatility and smart hybrid construction.

Product Advantages

• Smart hybrid construction, hardened steel, 6061 T-6 aluminum & high-performance polymer composites.
• 4 locking leg positions (In Degrees): 0, 45, 90, 135
• Adjustable rotating head with tilt and pan adjustment that can be locked down or released for quick target tracking.
• 60 degrees pan movement with a spring- loaded mechanism
• 20 degrees tilt movement
• Leg height range of 180mm to 251mm (Height measured at 90° leg position)
• Quick leg height increase with a simple pull down of the leg extension
• Quick leg height decrease with a push of a button
• Rectangular shaped inner legs for enhances stability & rigidity
• Rubberized feet for secure surface grip
• Quick & tool-less replacement of feet
• Foot print of 245mm to 300mm
• Additional leg height extension included.

Compatibility

• 1913 Picatinny Rail

Specifications

• Length - 206mm
• Width - 96mm
• Height - 50mm
• Length Deployed - 51mm
• Width Deployed - 242mm
• Height Deployed - 188mm
• Max Width Deployed - 255mm
• Max Height Deployed - 308 mm
• Weight - 405 gr

UPC: 7290111586347
