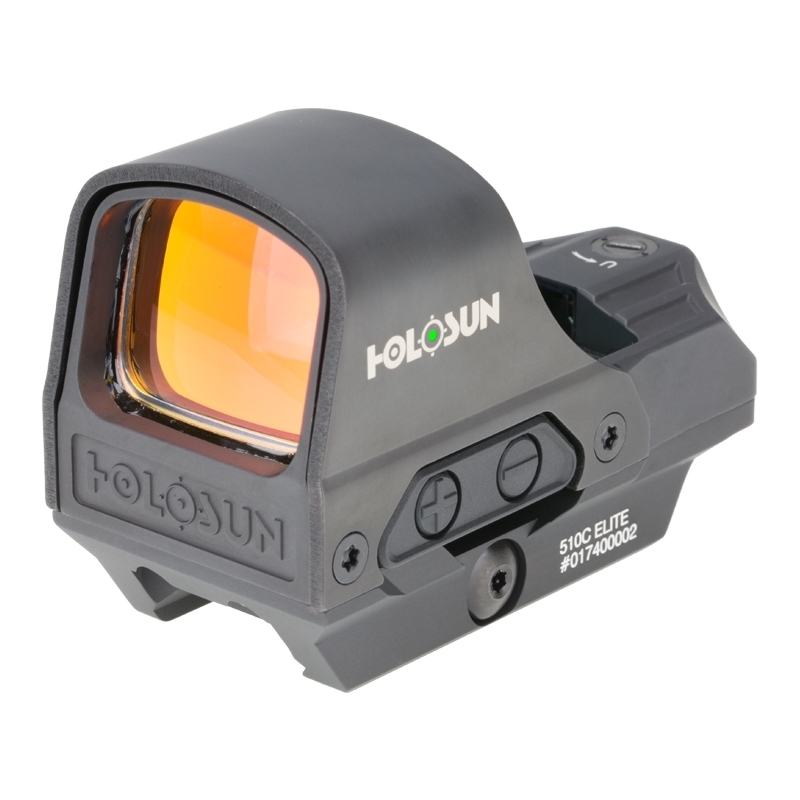

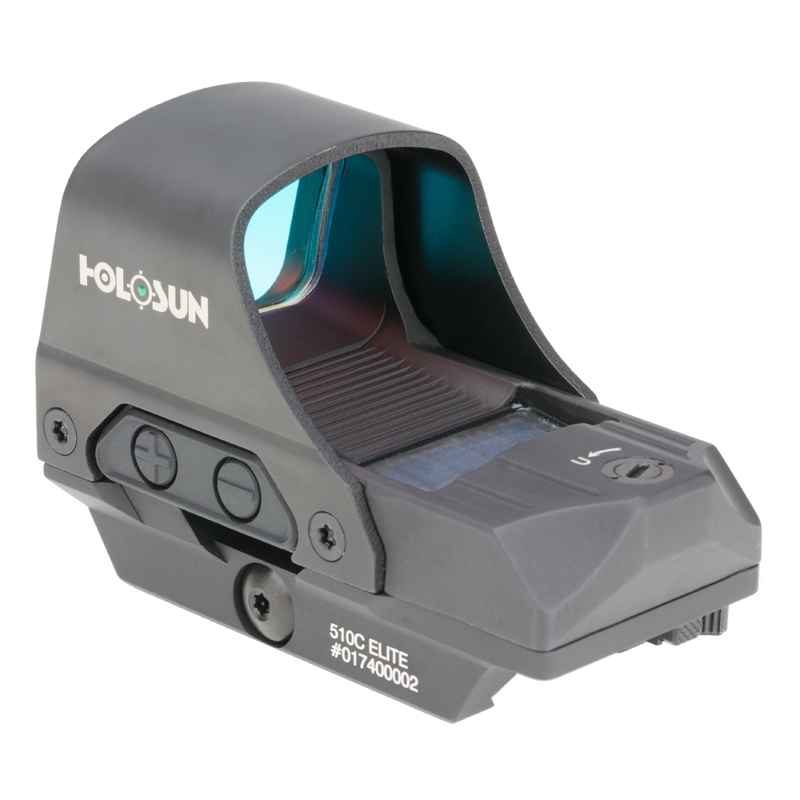

510C ELITE Sight

SKU: 410000680
$388.22

The HE510C-GR Elite is Holosun’s flagship Open Reflex optic, equipped with Holosun's highly efficient green reticle, the HE510C-GR Elite has an open frame for a wide sight picture. The HS510C Elite is powered by Holosun's new, “Advanced Super Solar Technology” as well as, a CR2032 battery. Utilizing our multi-reticle system (MRS) this unit features three reticle choices. The HE510C-GR can be switched between a 65 MOA circle with 2 MOA dot, a 2 MOA dot only, or a 65 MOA ring only, all at the push of a button. This optic is protected by a titanium-alloyed hood.

This product is covered by HOLOSUN® Elite Warranty.

Features • Multiple Reticle System featuring three reticles • Parallax free optical design, with unlimited eye relief • Minimized obstruction of vision with push button controls and a streamlined housing design • Shake Awake Technology • Internal battery tray design • 32mm×24mm open lens. • Solar cell and high capacity battery provide dual power supplies • Titanium-alloyed, shock resistant protective hood • Quick release mount • CNC machined with T6061-T6 housing

OPTICAL DATA

Light Source

  LED

Reticle

  2MOA Dot & 65MOA Ring

Parallax Free

  Yes

Unlimited Eye Relief

  Yes

Magnification

  1x

Multi-Coatings

  Yes

Integrated Laser

  No

ELECTRONIC DATA

Battery Type

  CR2032

Battery Life

  Up to 50,000 Hours

Brightness Setting

  10 Daylight & 2 NV Compatible

MECHANICAL DATA

Housing Material

  6061 Aluminum with Titanium Hood

Surface Finish

  MAO

Housing Color

  Black

Adjustment per Click

  0.5 MOA

W&E Travel Range

  ±50 MOA

Storage Temperature

  -40℉ - 158℉

Working Temperature

  -22℉ - 140℉

Submersion

  IP67

Vibration

  Up to 1000G

PHYSICAL DATA

Window Size

  0.91in x 1.2in

Dimension (in)

  3.3 x 1.6 x 1.8

Weight (oz)

  8.3

Central Height (in)

  1.41
