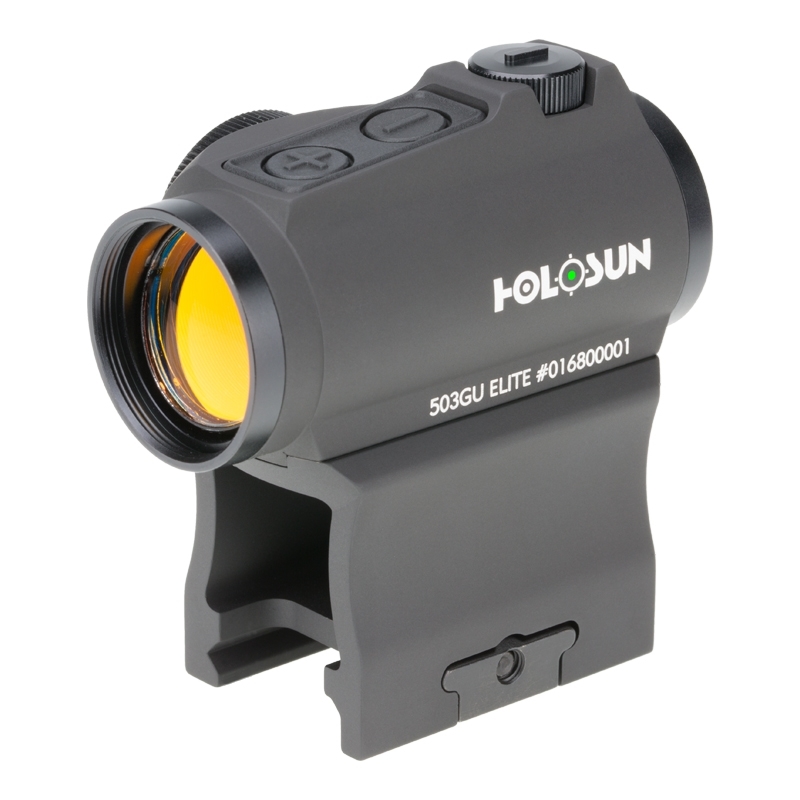

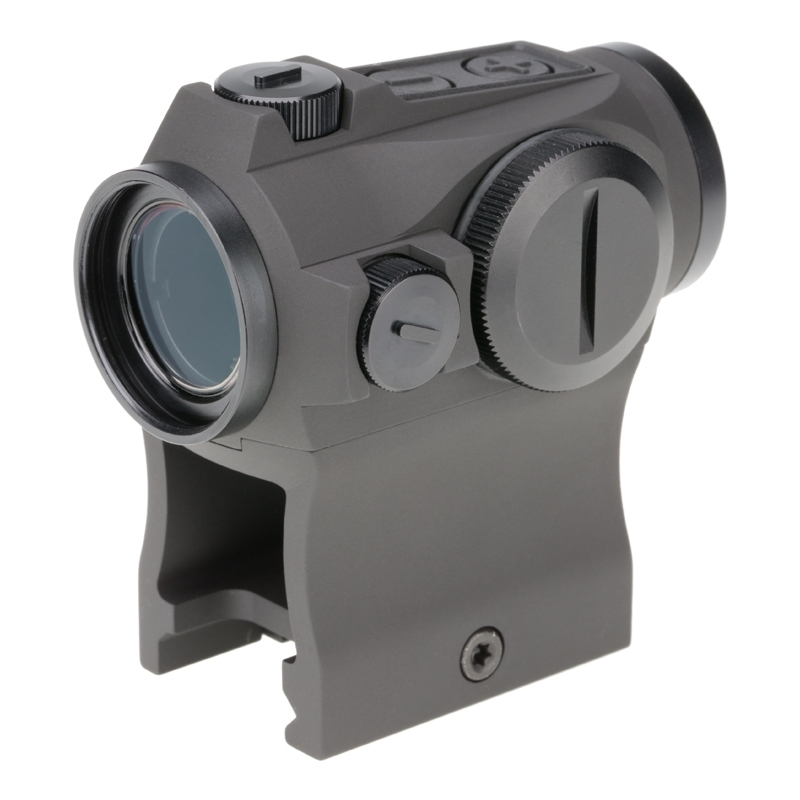

The HE503GU-GR Elite is a new micro green dot optic equipped with a 65 MOA circle dot reticle with the option of switching to a 2MOA dot only. The “G” signifies that the battery is side mounted on the side of the optic. The “U” signifies a housing design that shrouds the windage and elevation turrets on two sides. Employing new green LED technology, the life-time for one CR2032 battery can reach 5 years on the 2 MOA dot. Holosun’s “Shake Awake” technology automatically turns the optic on at the slightest movement. When the optic senses no movement, it will go to sleep.
This product is covered by HOLOSUN® Elite Warranty.
Features • Designed for day and night use • New advanced technology LED allows up to 50,000 hours of operation on one CR2032 battery • 2 MOA on dot size • Reduced training time and ammunition • Unlimited field of view • Parallax-free with unlimited eye relief • Unaffected by extreme weather conditions • Durable and reliable construction • Low mount and 1/3 Co-witness mount included
OPTICAL DATA |
Light Source | LED |
Reticle | 2MOA Dot & 65MOA Ring |
Parallax Free | Yes |
Unlimited Eye Relief | Yes |
Magnification | 1x |
Multi-Coatings | Yes |
Integrated Laser | No |
ELECTRONIC DATA |
Battery Type | CR2032 |
Battery Life | Up to 50,000 Hours |
Brightness Setting | 10 Daylight & 2 NV Compatible |
MECHANICAL DATA |
Housing Material | 6061 Aluminum |
Surface Finish | MAO |
Housing Color | Black |
Adjustment per Click | 0.5 MOA |
W&E Travel Range | ±50 MOA |
Storage Temperature | -40℉ - 158℉ |
Working Temperature | -22℉ - 140℉ |
Submersion | IP67 |
Vibration | Up to 1000G |
PHYSICAL DATA |
Window Size | 20mm Diameter |
Dimension (in) | 2.44 x 1.18 x 1.45 |
Weight (oz) | 6.3 |
Central Height (in) | 1.63 |
