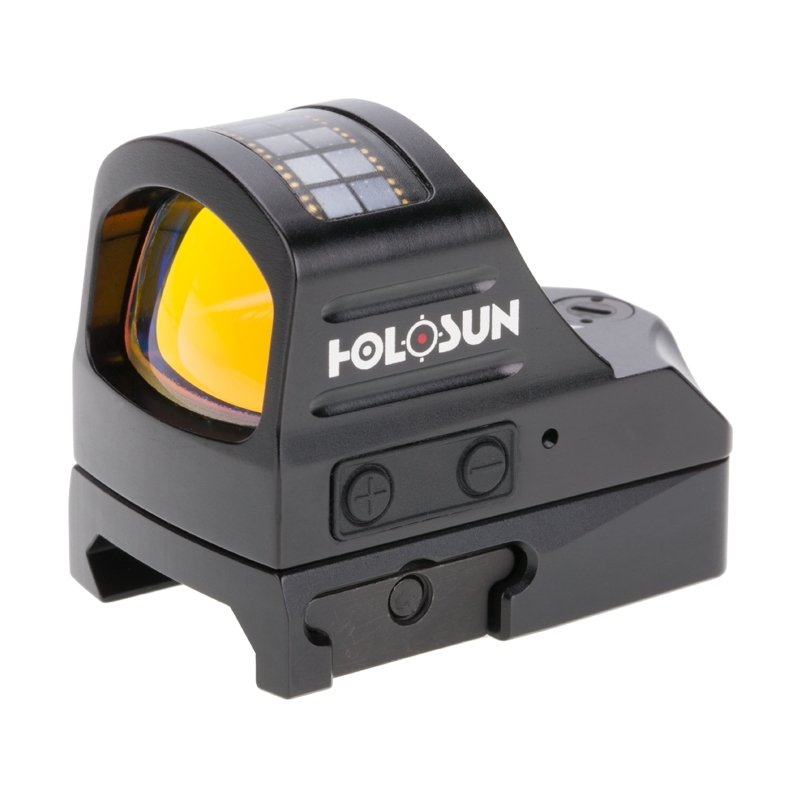

The new HS507C Micro Red Dot System from Holosun is a pistol-sized optic with an open frame for a great sight picture, clear glass and a rugged 7075 aluminum housing. It is powered by a CR2032 battery and Holosun’s innovative Solar Fail-safe back up. The HS507C will run up to 10 years on a single battery on setting 6, dot only. Featuring our Multi-reticle system, the HS507C allows the operator to switch the reticle between a 32 MOA circle with 2 MOA dot, a 2 MOA dot only, or a 32 MOA ring only, all at the push of a button. Better yet, the same LED projects all three reticles, so no re-zeroing is necessary. It comes equipped with Holosun's Shake Awake technology with last setting recall. This optic has our features in one tough, small package.
This product is covered by HOLOSUN® Limited Lifetime Warranty.
Features • Parallax free optical design, with unlimited eye relief • Multi-reticle System • Shake Awake technology with last setting recall • Solar cell and high capacity battery provide dual power supplies • Industry standard footprint for your pistol mounting needs • CNC machined with 7075 aluminum housing
OPTICAL DATA |
Light Source | LED |
Reticle | 2MOA Dot & 32MOA Ring |
Parallax Free | Yes |
Unlimited Eye Relief | Yes |
Magnification | 1x |
Multi-Coatings | Yes |
Integrated Laser | No |
ELECTRONIC DATA |
Battery Type | CR2032 |
Battery Life | Up to 100,000 Hours |
Brightness Setting | 10 Daylight & 2 NV Compatible |
MECHANICAL DATA |
Housing Material | 7075 Aluminum |
Surface Finish | Hard Anodized |
Housing Color | Black |
Adjustment per Click | 0.5 MOA |
W&E Travel Range | ±40 MOA |
Storage Temperature | -40℉ - 158℉ |
Working Temperature | -22℉ - 140℉ |
Submersion | IPX8 |
Vibration | Up to 5000G |
PHYSICAL DATA |
Window Size | 0.63in x 0.91in |
Dimension (in) | 1.8 x 1.2 x 1.6 |
Weight (oz) | 2.65 |
Central Height (in) | 0.7 |
