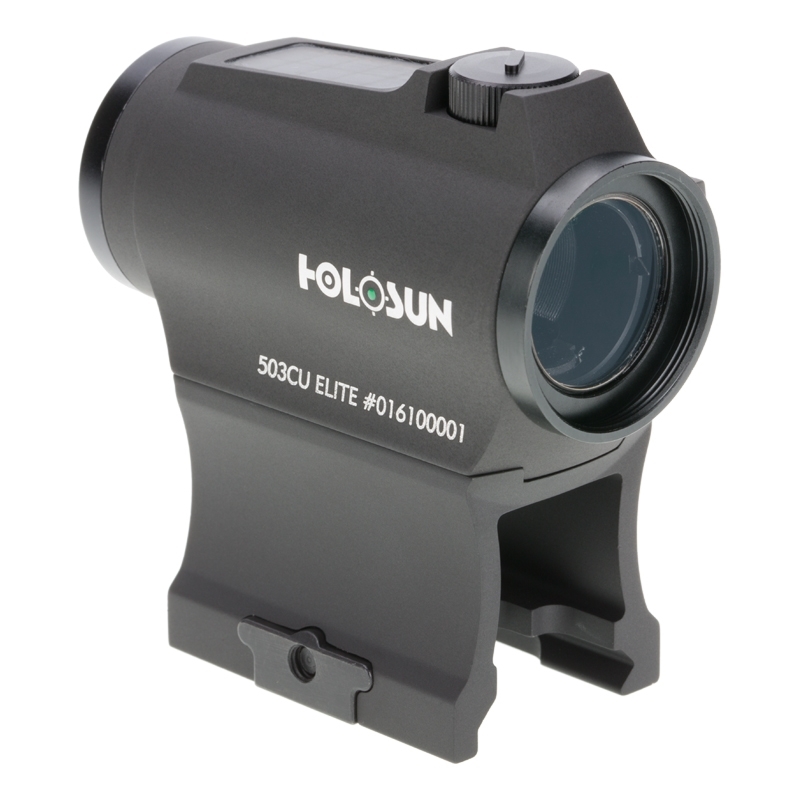

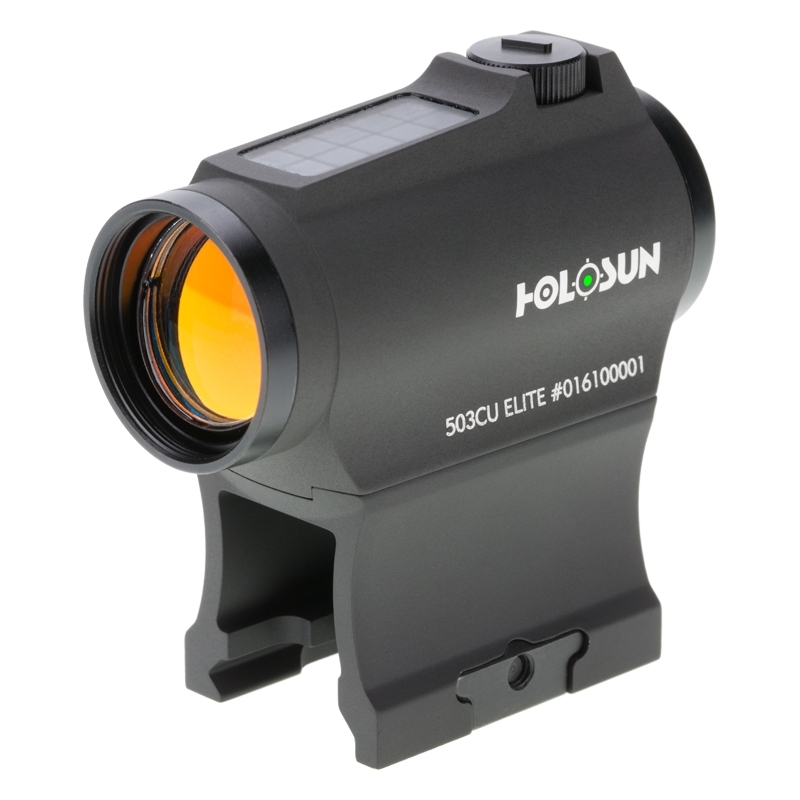

The HE503CU-GR Elite is a new micro green dot optic equipped with a 65 MOA circle dot reticle with the option of switching to a 2MOA dot only. Our highly efficient light emitting diodes and solar panels allow Holosun solar optics to run without a battery in many lighting conditions. Additionally, the back-up battery lasts up to 5-years on the dot and up to 2 years on the circle dot. The “U” signifies a housing design that shrouds the windage and elevation turrets on two sides.
This product is covered by HOLOSUN® Elite Warranty.
Features • Parallax free with unlimited eye relief. • New advanced Green technology LED allows up to 50,000 hours of operation on one CR2032 battery • 2 MOA dot and a 65 MOA ring • Unlimited field of view • Parallax-free with unlimited eye relief • Powered by both battery and solar • Low mount and 1/3 Co-witness mount included
OPTICAL DATA |
Light Source | LED |
Reticle | 2MOA Dot & 65MOA Ring |
Parallax Free | Yes |
Unlimited Eye Relief | Yes |
Magnification | 1x |
Multi-Coatings | Yes |
Integrated Laser | No |
ELECTRONIC DATA |
Battery Type | CR2032 |
Battery Life | Up to 50,000 Hours |
Brightness Setting | 10 Daylight & 2 NV Compatible |
MECHANICAL DATA |
Housing Material | 6061 Aluminum |
Surface Finish | MAO |
Housing Color | Black |
Adjustment per Click | 0.5 MOA |
W&E Travel Range | ±50 MOA |
Storage Temperature | -40℉ - 158℉ |
Working Temperature | -22℉ - 140℉ |
Submersion | IP67 |
Vibration | Up to 1000G |
PHYSICAL DATA |
Window Size | 20mm Diameter |
Dimension (in) | 2.44 x 1.18 x 1.45 |
Weight (oz) | 6.3 |
Central Height (in) | 1.63 |
